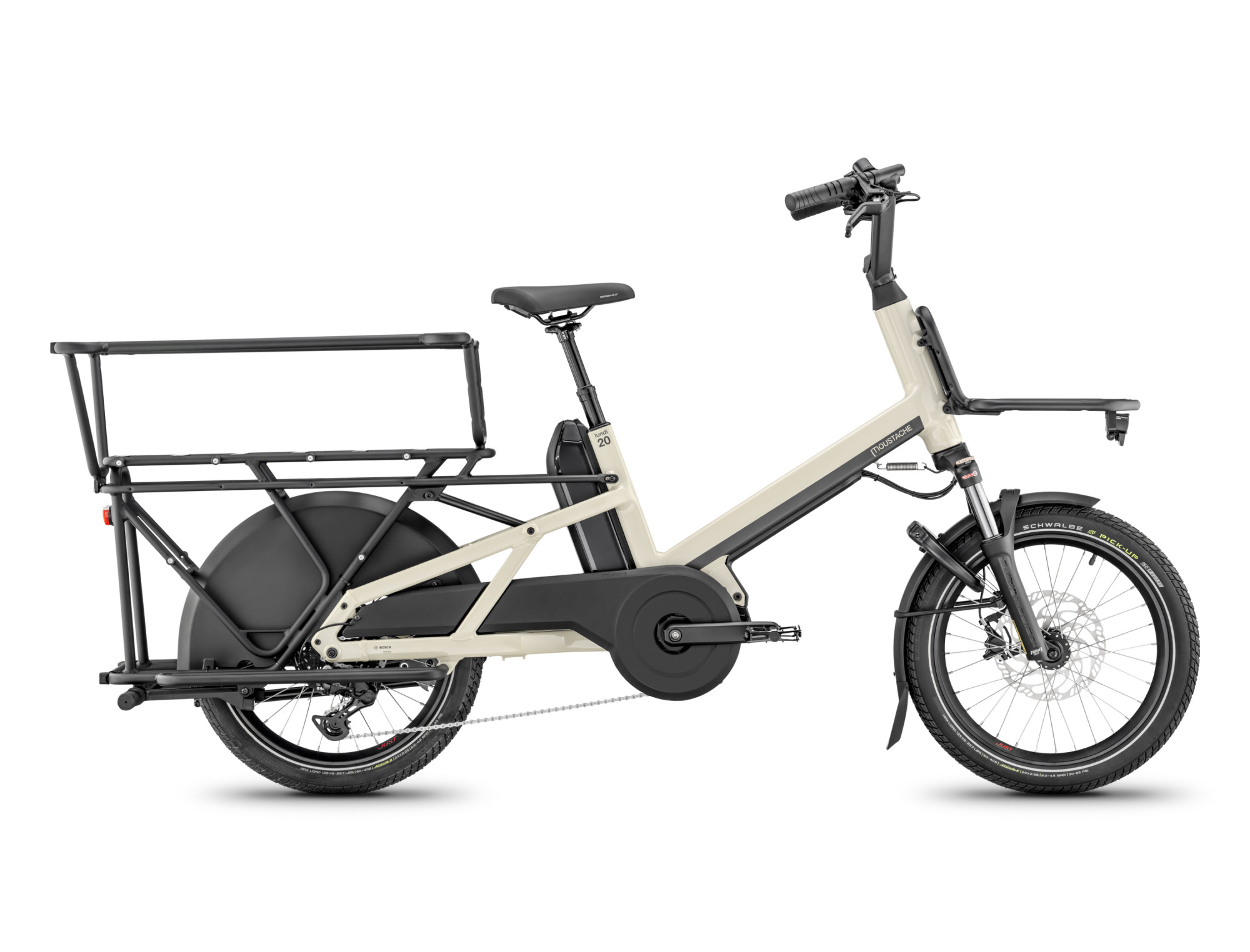

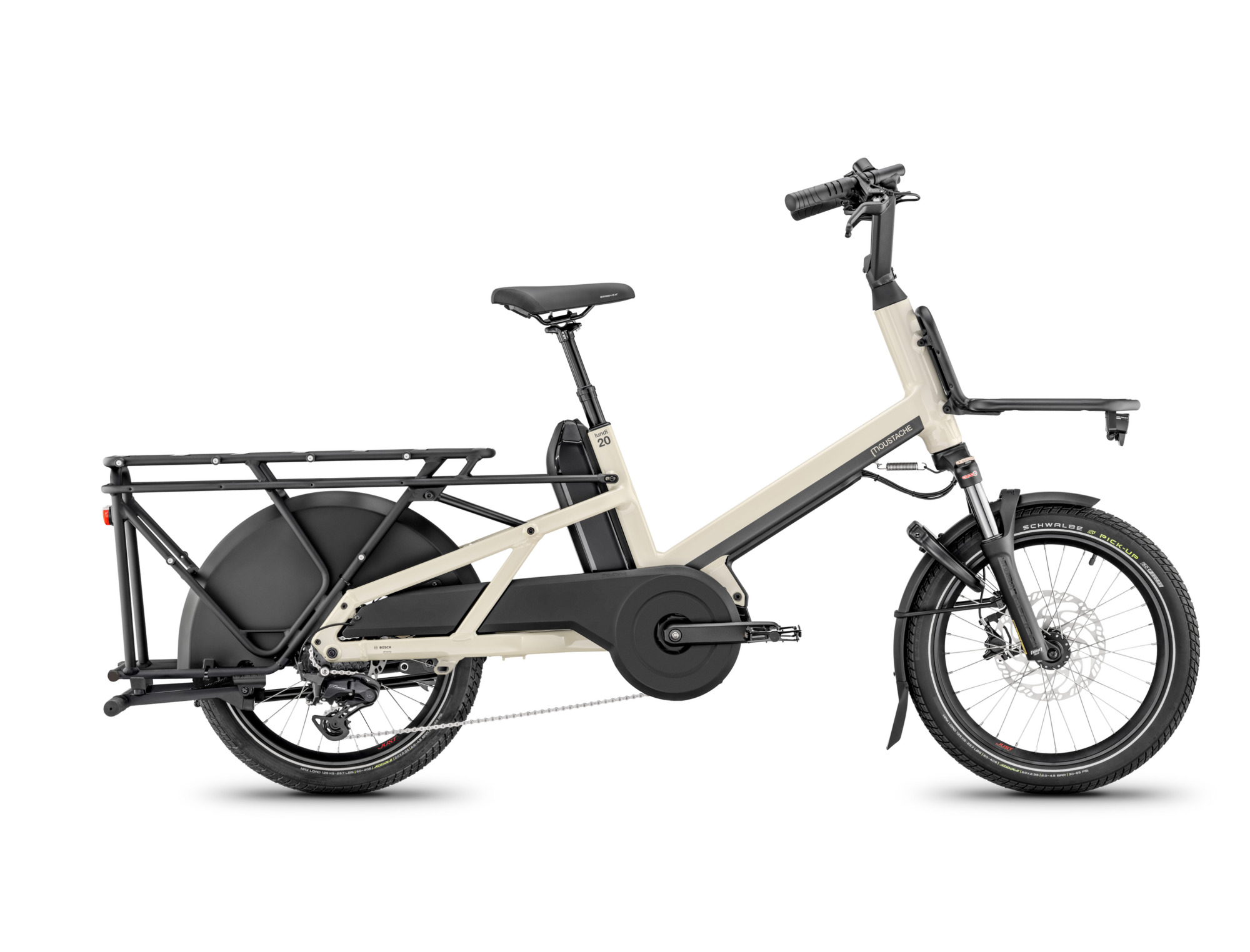

Lundi 20 Cargo 3
4 699(1) 0
Lundi 20 Cargo 3
4 699(1) 0
An evolution of the original Lundi 20, Cargo 3 retains all its key strengths while offering even more comfort and ease of use every day. Its new lowered frame is super easy to step over. The reinforced front suspension, specially designed for cargo use, keeps you comfortable even on bumpy roads... And the brand-new kickstand, still positioned at the rear for maximum stability, is a breeze to activate. As for the upgraded Cues drivetrain, it ensures smooth, reliable shifting over time.
Choose your battery
Select your equipment
Sturdy aluminum protective bar to ensure the safety of passengers or transported goods
Integrated footrests
Removable
Compatible accessories
An evolution of the original Lundi 20, Cargo 3 retains all its key strengths while offering even more comfort and ease of use every day. Its new lowered frame is super easy to step over. The reinforced front suspension, specially designed for cargo use, keeps you comfortable even on bumpy roads... And the brand-new kickstand, still positioned at the rear for maximum stability, is a breeze to activate. As for the upgraded Cues drivetrain, it ensures smooth, reliable shifting over time.
Sturdy aluminum protective bar to ensure the safety of passengers or transported goods
Integrated footrests
Removable
Compatible accessories
Features that will make you smile
Accessories and equipment
Specifications
Your configuration
Reference
L03OGU500250
Accessories
Frame
Frame
Lundi 20 low step-over, 6061 T4-T6 alloy, hydroformed and extruded triple cavity tubes for optimal stiffness. Integrated cable routing. Optimal geometry for stable handling and great manoeuvrability.
Suspensions
Fork
SR Suntour Mobie 34 Suspension Fork, designed to withstand the forces of cargo use. 70mm travel with Lockout function. Boost spacing
Motor system
Motor
Bosch, Cargo Line, 85Nm
Battery
Bosch, PowerPack 545Wh, Smart System
Remote
Bosch, Purion 200, Smart System
Autonomy
103km
Charger
Bosch, 2Ah
Transmission
Rear Derailleur
Shimano, CUES, RD-U4000-GS, 9-speed
Chainring
FSA, Narrow-Wide, 48 teeth, chainguard
Cassette
Shimano, CUES, CS-LG300 9-speed, 11-41T
Chain
Shimano, LG500, 108 links
Shifter
Shimano, CUES, SL-U4000-9R, 9-speed
Cranks
Moustache aluminium, 170 mm, compatible with Gen2 / Gen4 motor
Brakes
Front brake
Magura, MT4, hydraulic disc
Rear Brake
Magura, MT4, hydraulic disc
Front Rotor
Magura, MDR-C, 203mm
Rear Rotor
Magura, MDR-C, 180mm
Wheels
Front Hub
Moustache, 32H, 15x110mm, thru axle
Rear Hub
Moustache, 32H, 12x148mm, thru axle
Front rim
Moustache, asymmetric, alloy 6061E, welded, 32 holes, 20", internal width 23mm
Rear rim
Moustache, asymmetric, alloy 6061E, welded, 32 holes, 20", internal width 23mm
Front tyre
Schwalbe, Pick-Up, 20x2.35, Super Defense
Cockpit
Handlebar
Moustache, Lundi custom ergonomic, alloy
Headset
NO.55R/57SC
Grips
Ergonomic, dual-density
Saddle
Selle Royal, Essenza Moderate Lady
Seatpost
Limotec, A3, suspended + telescopic, aluminium diameter 34.9mm, 100mm amplitude, 40mm suspension, comfortable and safe.
Seatclamp
Moustache, alloy, 34.9mm
Equipment
Front light
AXA, NXT, 30 lux, powered by main battery
Rear light
AXA, Duo Flat, increased brightness under deceleration, powered by main battery
Horn
Spanninga Minibell Black
Lock
AXA Imenso
Kickstand
Moustache, central, wide support for better stability, Pedal activated
Mudguard
Front: Moustache, alloy, double wall design, w/alloy stays and mudflap / Rear: PP, 180° lateral protection
Carrier
Moustache, alloy, exclusive longtail design. Removable side fastenings for QL3 luggage. Platform with multiple MIK HD system to rapidly attach all compatible accessories, bags and child seats. Up to 70kg load capacity.
Front Carrier
Moustache, alloy, compatible with MIK baskets and accessories
Pedals
alloy platform with reflectors
Features
Sizes
TU
Colors
Silk Grey
Weight
33kg
GVWR
200kg
Warranty
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
Product specifications may change without notice. Non-binding information.

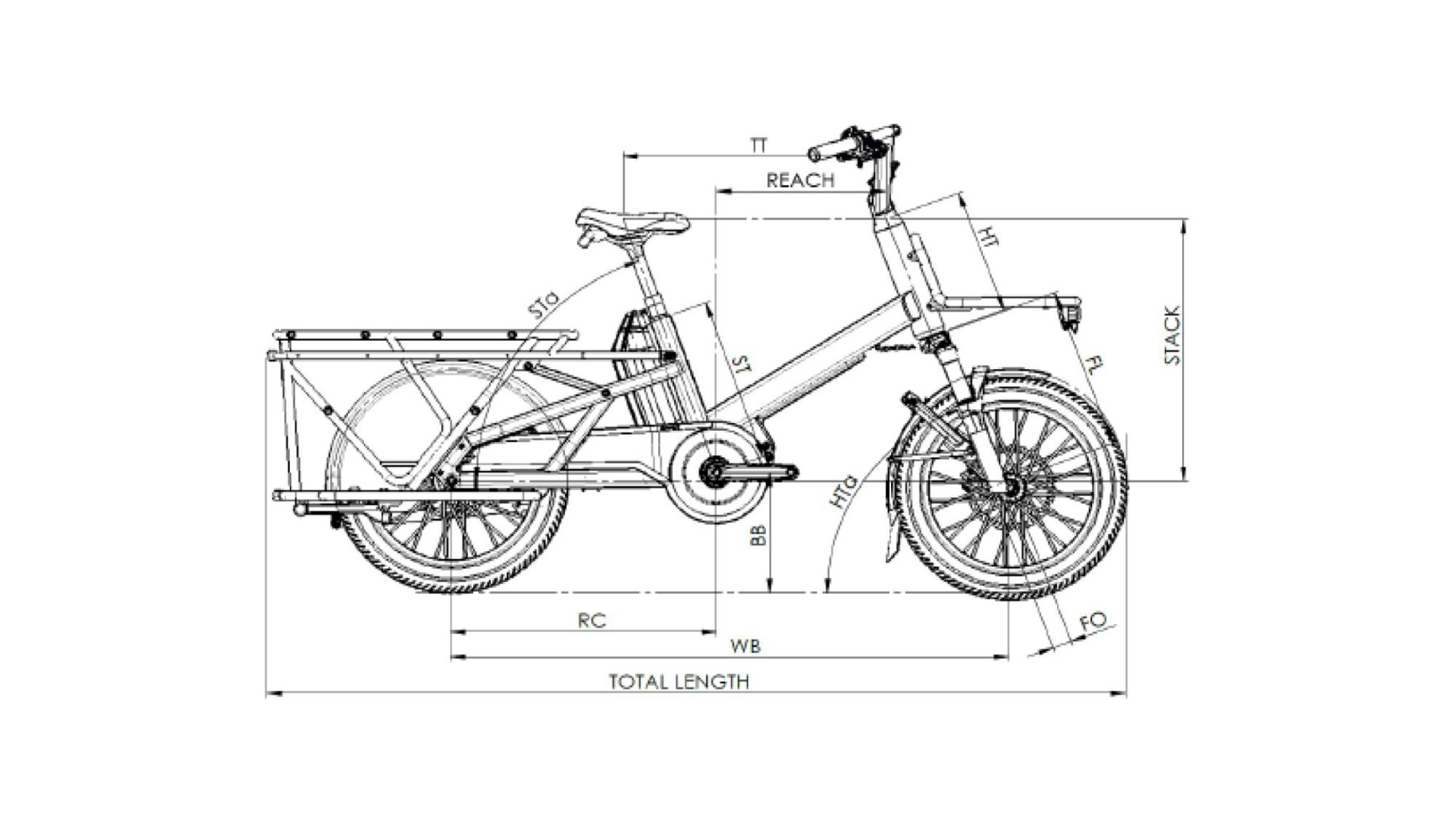

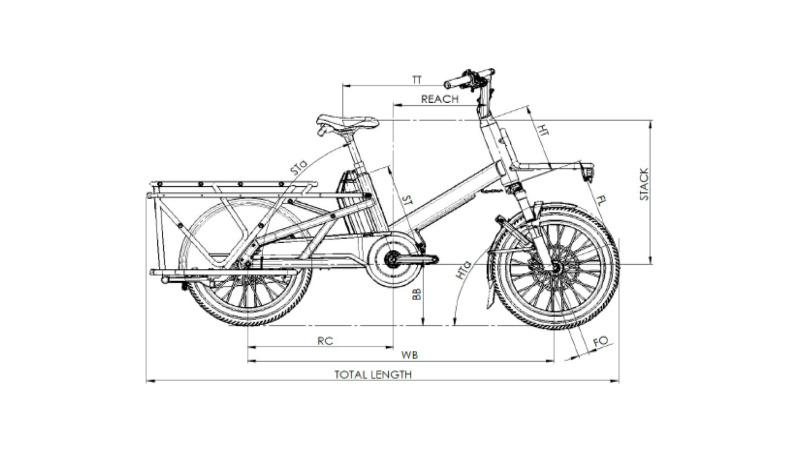

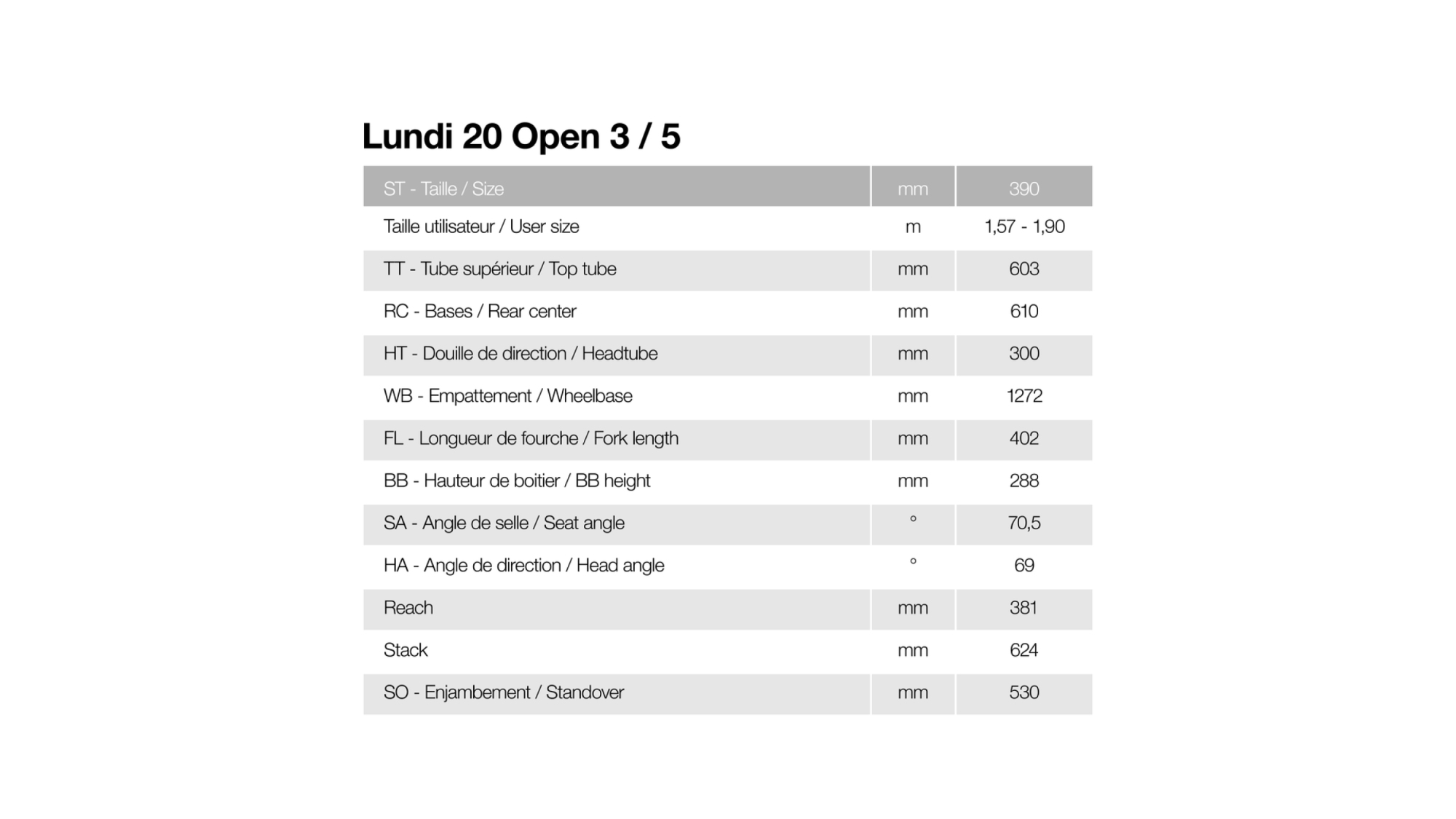

Geometry
Other models
Compare
Starting at 3 999 € (1)
-
Color(s)
-
Motor / Torque
Bosch Cargo Line / 85Nm
-
Battery / Autonomy
545Wh / 103km
-
Display
Purion 200
-
Drivetrain
Shimano derailleur 9 speeds
-
Frame Lock
AXA Block XXL
Starting at 4 699 € (1)
-
Color(s)
-
Motor / Torque
Bosch Cargo Line / 85Nm
-
Battery / Autonomy
545Wh / 103 km or 800Wh / 139 km
-
Display
Purion 200
-
Drivetrain
Shimano derailleur 9 speeds
-
Frame Lock
AXA Block XXL
-
Fork
Suntour
Starting at 5 599 € (1)
-
Color(s)
-
Motor / Torque
Bosch Cargo Line / 85Nm
-
Battery / Autonomy
545Wh / 103 km or 800Wh / 139 km
-
Display
Purion 200
-
Drivetrain
Enviolo continuously variable hub + belt
-
Frame Lock
AXA Block XXL
-
Fork
Suntour
Lundi 20 Cargo 3 in the news!
Frequently Asked Questions
How do I adjust my shock absorber?
Adjusting the SAG of the shock absorber is the first and most essential adjustment to make on an MTB! It’s also one of the easiest measurements to get wrong… so here’s how to do it:
If you’re alone, set up near a wall (it’ll help you balance at the start and end). Ideally, though, it’s best to have two people for this operation.
Of course, you need to be fully equipped, just as if you were heading out for a ride, so the total weight reflects real riding conditions.
-
Inflate the shock absorber to the base pressure corresponding to your weight. With Moustache bikes, it’s simple: it’s approximately your weight multiplied by 2 (to get the equivalent in PSI). So, if you weigh 75 kg × 2 = 150 PSI. Easy ;-{D. Make sure the shock is in the open position when measuring SAG!
-
Get on your bike, with the saddle lowered (if you have a dropper post). Either hold onto the wall or have someone assist you. At this point, you’ve put much more pressure on the suspension than just your body weight. Sit down on the saddle and then raise it to your usual pedaling position.
-
Release the brakes, which might lock the suspension, and gently bounce the handlebars to ensure the suspension settles correctly into the SAG position for your weight.
Now comes the tricky part, where your balancing skills will shine!
-
If you have someone to assist you, they can simply check where the SAG indicator ring aligns with the measurement marker on the frame. Done!
-
If you’re alone, carefully slide the indicator ring up against the shock body without making the suspension move, then carefully dismount using the wall for support (without applying any extra pressure, as this could distort the measurement). Not easy, we know… but it’s doable!
Once off the bike, and if you’re confident the measurement wasn’t altered, check where the ring aligns with the SAG marker.
-
If there’s less SAG than recommended, release some air with the pump.
-
If there’s too much SAG, add more air.
You’ll find adjustment tips in your Moustache user manual.
