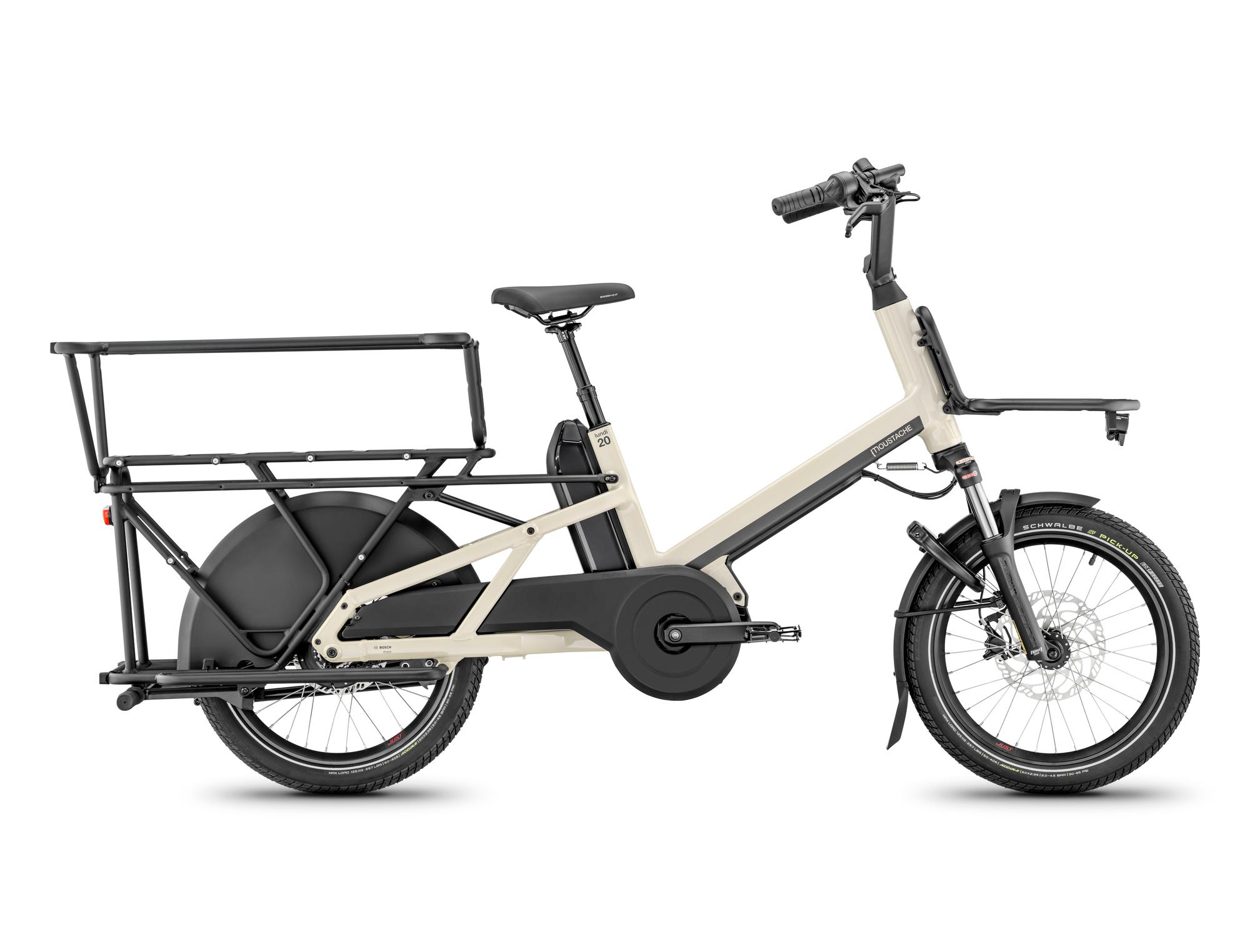

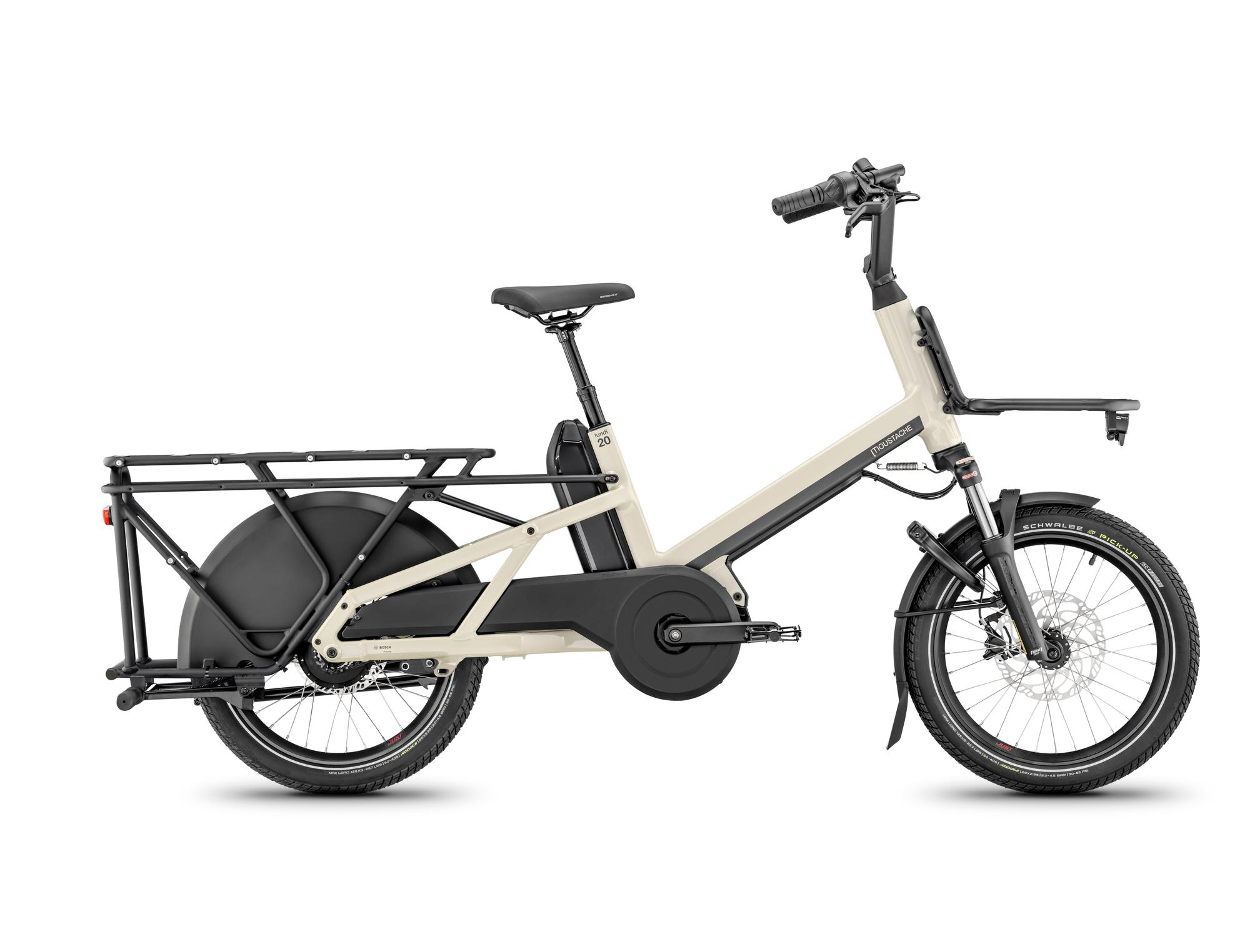

Lundi 20 Cargo 5
Lundi 20 Cargo 5
The Gates belt drive guarantees minimal care is needed and a life time that’s...maximum. It is also totally integrated for improved safety.
With its new longtail frame designed to guarantee you a large load capacity at the front and the rear, you will be able to safely transport your children or your belongings, well held in place thanks to the ALBERT protection bar, and easily change any accessories according to your needs… without forgetting the pleasure of riding in the saddle of a bike that's easy to manoeuvre and fun :-{D
Would you like an additional battery?
Originally equipped with a 500 Wh battery. Choose the DUAL option to get 2 batteries of 500 Wh each (total 1000 Wh).
Select your equipment
Sturdy aluminum protective bar to ensure the safety of passengers or transported goods
Integrated footrests
Removable
* Generally observed price
The Gates belt drive guarantees minimal care is needed and a life time that’s...maximum. It is also totally integrated for improved safety.
With its new longtail frame designed to guarantee you a large load capacity at the front and the rear, you will be able to safely transport your children or your belongings, well held in place thanks to the ALBERT protection bar, and easily change any accessories according to your needs… without forgetting the pleasure of riding in the saddle of a bike that's easy to manoeuvre and fun :-{D
Originally equipped with a 500 Wh battery. Choose the DUAL option to get 2 batteries of 500 Wh each (total 1000 Wh).
Sturdy aluminum protective bar to ensure the safety of passengers or transported goods
Integrated footrests
Removable
Features that will make you smile
Your configuration
Reference
LU20O05ES220
Accessories
Tyres
Schwalbe, Pick-Up, 20x2.35, Super Defense
Saddle
Selle Royal, Essenza Moderate Lady
Seatpost
Moustache, suspension + dropper, alloy 34.9mm, 60mm drop, 40mm travel, comfort and security
Seatclamp
Moustache, alloy, 34.9mm
Handlebar
Moustache, Lundi custom ergonomic, alloy
Headset
FSA, No 28/41 integrated
Grips
Ergonomic, dual-density
Front light
AXA, Blueline, 30 lux, powered by main battery
Rear light
AXA, Duo Flat, increased brightness under deceleration, powered by main battery
Kickstand
Moustache, central rear, wide stance for better stability
Mudguard
Front: Moustache, alloy, double wall design, w/alloy stays and mudflap / Rear: PP, 180° lateral protection
Carrier
Moustache, alloy, exclusive longtail design. Removable side fastenings for QL3 luggage. Platform with multiple MIK HD system to rapidly attach all compatible accessories, bags and child seats. Up to 70kg load capacity.
Front Carrier
Optional extra: Moustache, alloy, compatible with MIK baskets and accessories, available in 2 sizes
Frame
Lundi 20 mid step-over, 6061 T4-T6 alloy, hydroformed and extruded triple cavity tubes for optimal stiffness. Integrated cable routing. Optimal geometry for stable handling and great manoeuvrability. Mounting points for optional front carrier
Pedals
alloy platform with reflectors
Fork
Lundi, alloy w/integrated cable routing
Sizes
TU
Motor
Bosch, Cargo Line, 250W, 85Nm
Colors
Black glossy
Battery
Bosch, PowerPack 500Wh
Weight
32kg
Autonomy
102km
GVWR
200kg
Charger
Bosch, 4Ah
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
Display
Bosch, Intuvia central mount with separate control unit - « Walk assist » - Information available offline - USB port to charge a phone, MP3 player, etc.
Chainring
Gates, 55T
Cassette
Gates, 22T
Chain
Gates, CDX belt, clean, smooth and resistant
Shifter
Enviolo, PRO, rotating handle with visual indicator
Cranks
Moustache, aluminium, 170mm
Front brake
Magura, MT4, hydraulic disc
Rear Brake
Magura, MT4, hydraulic disc
Front Rotor
Magura, MDR-C, 203mm
Rear Rotor
Magura, MDR-C, 180mm
Front Hub
Moustache, 32H, 15x110mm, thru axle
Rear Hub
Enviolo, HD 380%, 32H, 12x148mm, nut
Rims
Moustache, asymmetric, alloy 6061E, welded, 32 holes, 20", internal width 23mm
Other models
Compare-
Color(s)
-
Motor / Battery
Bosch Cargo Line / PowerPack 500Wh ou 1000Wh
-
Console
Intuvia
-
Autonomy
106 ou 217 km
-
Transmission
Shimano Deore 10 speed
-
Seatpost
40mm suspension and 60mm drop
-
Equipment
Central kickstand
-
Color(s)
-
Motor / Battery
Bosch Cargo Line / PowerPack 500Wh ou 1000Wh
-
Console
Intuvia
-
Autonomy
102 ou 209 km
-
Transmission
Enviolo Heavy Duty, 380 % ratio range, Gates belt
-
Seatpost
40mm suspension and 60mm drop
-
Equipment
Central kickstand
Advice on the range
Moisture, dirt and salinity (whether from winter salt or sea air) are all detrimental to the preservation of your Moustache bike. That’s why it’s vital to clean your Moustache regularly and to protect all its components from corrosion:
- Regular cleaning and lubrication of the chain: Clean the chain and lubricate it regularly. After riding in the rain, wipe it dry and apply a new lubricant.
- Protection of electrical components: Do not leave your Moustache without a battery cover and connector cover to prevent moisture build-up.
- 1 wash a week: We recommend cleaning your Moustache once a week to help keep your machine in good condition. Wash after outings in the rain or in dusty conditions, using lukewarm water and mild soap.
- Insist on drying: Pay particular attention to the drying process: it is a crucial step in preventing corrosion of your EAB. A poorly dried bike can cause moisture to encrust its components.
By following these tips, you’ll effectively prevent corrosion on your Moustache bike, ensuring reliability and extending its lifespan! ?♂️✨
In the event of oxidation on your bike, we advise you to visit your nearest dealer so that he can check your bike so that you can enjoy your next outings.
The Bosch battery in your Moustache bike is essential, powering the motor to provide you with valuable assistance with every pedal stroke. It plays a crucial role in the bike’s range, which is influenced by factors such as riding conditions, rider profile and riding style. Moustache use exclusively Bosch batteries from 400Wh to 750Wh.
The choice of battery depends on the distance you cover each day and the type of terrain. For short journeys, a smaller battery may be sufficient, while longer distances would require 625 or 750Wh batteries. The gradient is also crucial, and a 400Wh battery may not be enough for steep inclines.
Load weight affects range. Carrying loads requires more energy. Managing assistance modes, with Eco, Tour, Sport and Turbo levels, also has an impact on energy consumption. Judicious use of assistance levels and constant driving will maximise range.
By taking into account distance, altitude difference, loading weight and assistance modes, you can choose the ideal battery for your Moustache bike. Whether you’re an urbanite or an adventurer, the right battery will give you the best possible experience. Use the Bosch range calculator for an accurate simulation. Find out more about our range.
Need to find your bike’s serial number?
If your dealer or your insurance company asks you for the serial number of your EAB but you’re having trouble finding it, Moustache offers you a guide to help you find it ;-{D
Where can I find the serial number on a Moustache Bikes electric bike?
This number begins with the letter H and is followed by numbers and letters (example: H3EVM08928). This number may also appear on your purchase invoice. Please contact your authorised dealer for more information.
On bikes fitted with the Bosch Smart System and bikes produced in 2023 : The serial number is located under the down tube near the head tube, a QR code is present in the same place.
Please note that the number on the rear triangle does not correspond to the bike’s serial number, but to the serial number of the part in question.
On other models: The number can be located on the frame, at the rear of the seat tube between the engine and the rear wheel.
What is a serial number used for ?
A unique number that you can use to identify your bike in the event of loss or theft, or to contact our technical support team. You can also use this number to take out bike insurance or to register your bike in the virtual garage on our website and obtain a 5-year extended warranty. Here’s the link to register your bike and benefit from this extended warranty.
We are a victim of fraud organised by multiple fake Moustache Bikes pages on Facebook.
The one and only official Moustache Bikes page is this one:
https://www.facebook.com/moustachebikesofficial
We have already taken the necessary steps to have the various pages closed, but this reporting operation is taking a long time with Facebook.
We invite you not to share this game and to report this page to Facebook.
To do this, just click on the “…” under the cover banner and then click on “report” at the bottom.
Thank’s in advance for your help ;-{D
Testing a Moustache bike couldn’t be easier, just visit our TEST & SMILE platform, where you can easily locate the test bikes available from Moustache retail outlets taking part in the programme.
You can also meet us throughout the year at various test events on our Test & Smile tour, the dates and towns of which can be found on our Fabebook page or on our website.
You will find a list of authorised Moustache dealers local to you on this page. It couldn’t be simpler: all you need to do is enter your town and post code! ;-{D
The weight of our Moustache bikes varies depending on the model and configuration. We understand that weight can be an important factor in choosing your new bike.
You’ll find this information at the bottom of our product pages in the “specifications” section, which corresponds to an average weight recorded on our M size frames, including battery and without pedals. The weights shown may therefore vary slightly (+/- 5%) depending on the size of the frame and the various product specifications.
At Moustache, we strive to design bikes that offer an optimal balance between lightness, durability and handling.
If you have specific questions about the weight of a particular model, or if you need help choosing the bike that best suits your needs, don’t hesitate to contact our team of experts and authorised dealers. We’re here to guide you in your choice and ensure a top-notch riding experience! ?♂️✨
For the best cycling experience, choosing the right size is the first step. Keep calm ! At Moustache, we understand the importance of comfort when cycling. That’s why, to meet the needs of every body type, our models are available in 4 different sizes: S, M, L and XL.
On each product page, in the “geometry” section, you’ll find the sizes recommended by Moustache for the specific model. This information helps you make an informed decision based on your body shape and riding preferences.
What do I do if I fall between two sizes?
If you find yourself between two sizes and you’re not sure, the first thing that will steer you towards one model or another will be your inseam and your preferences. To be sure of your choice, don’t hesitate to contact an authorised Moustache retailer.
Our partners are trained to offer you personalised advice based on your size, bike configuration and individual preferences !
